*** NEW for March 2023* * *

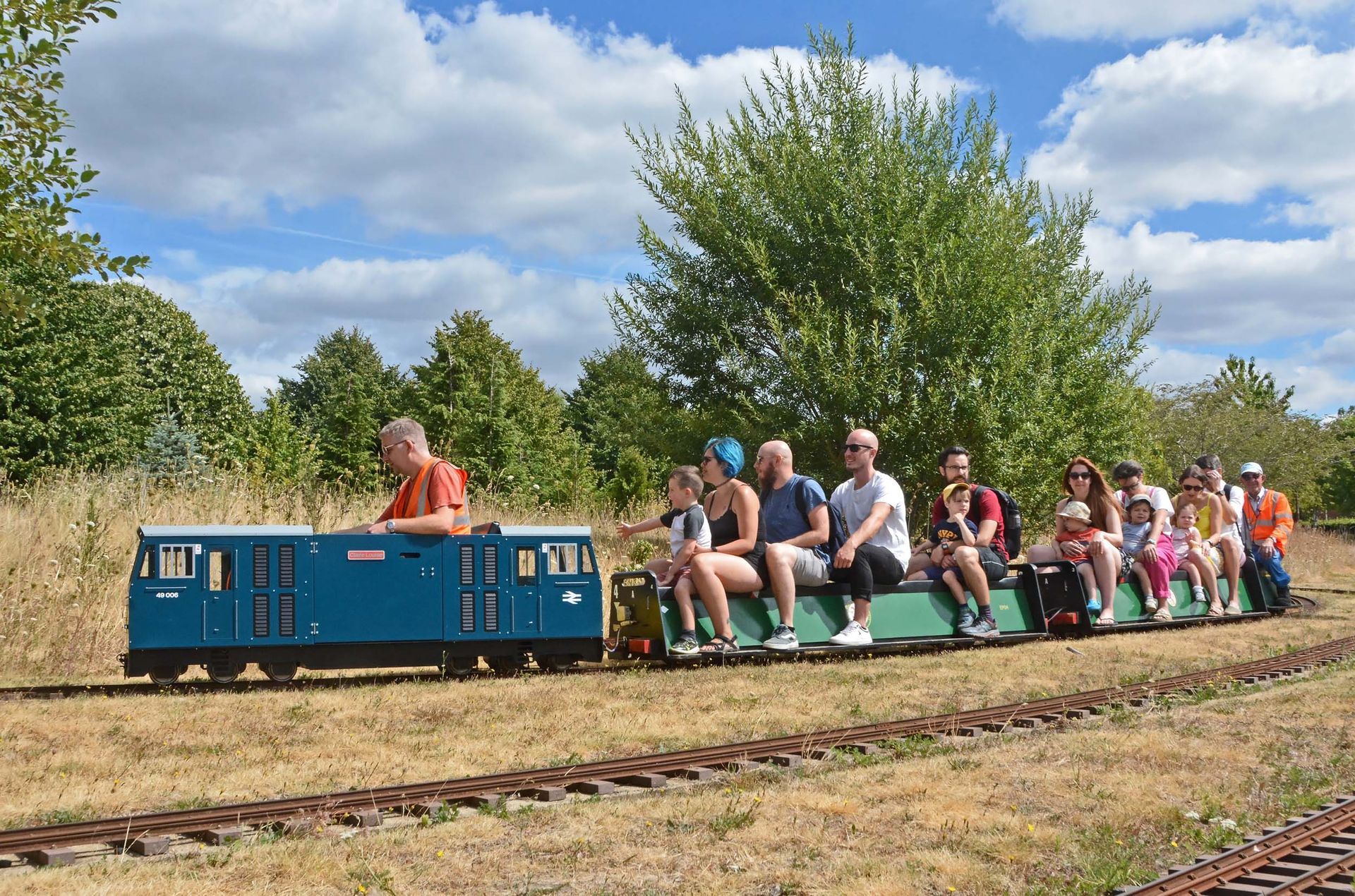

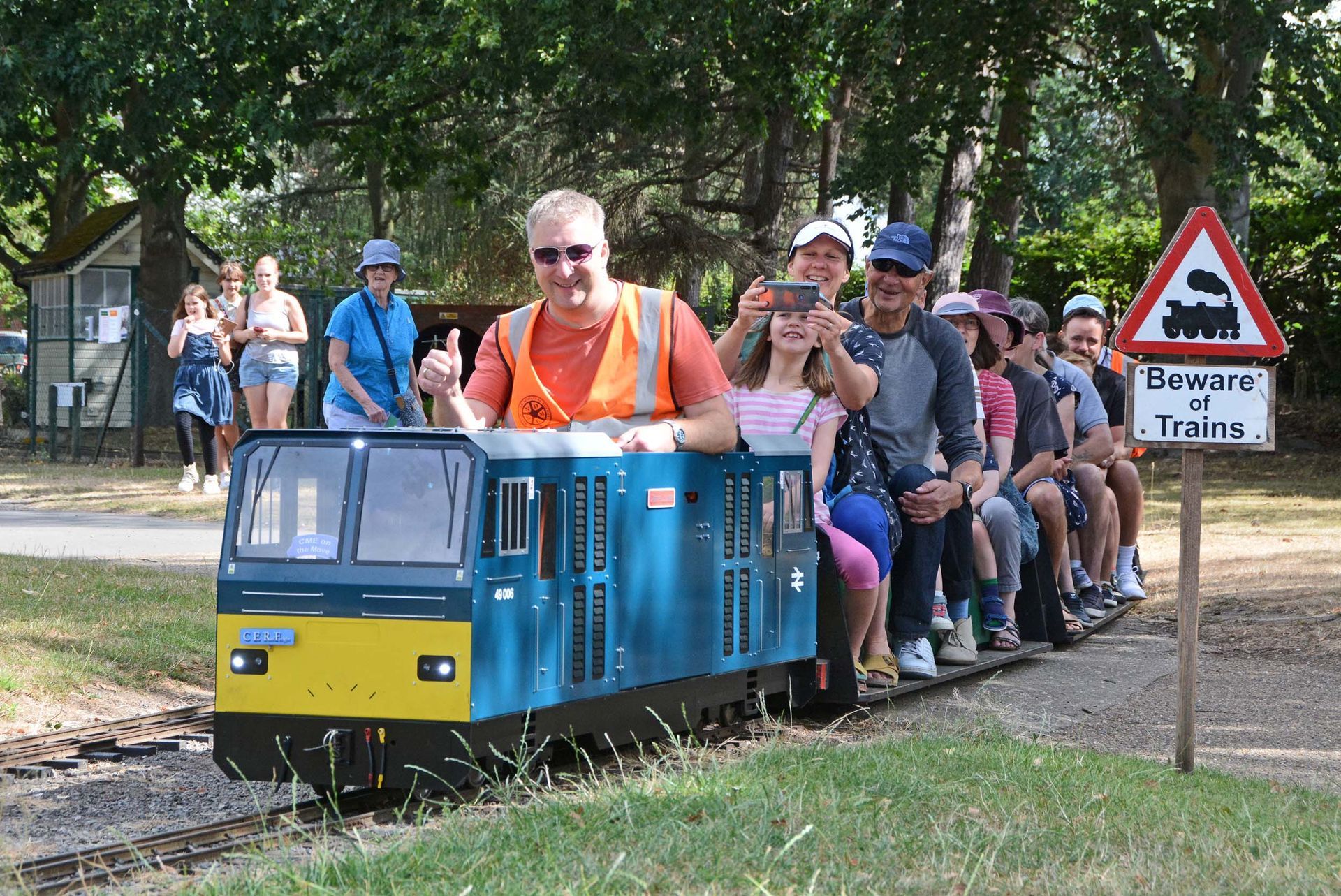

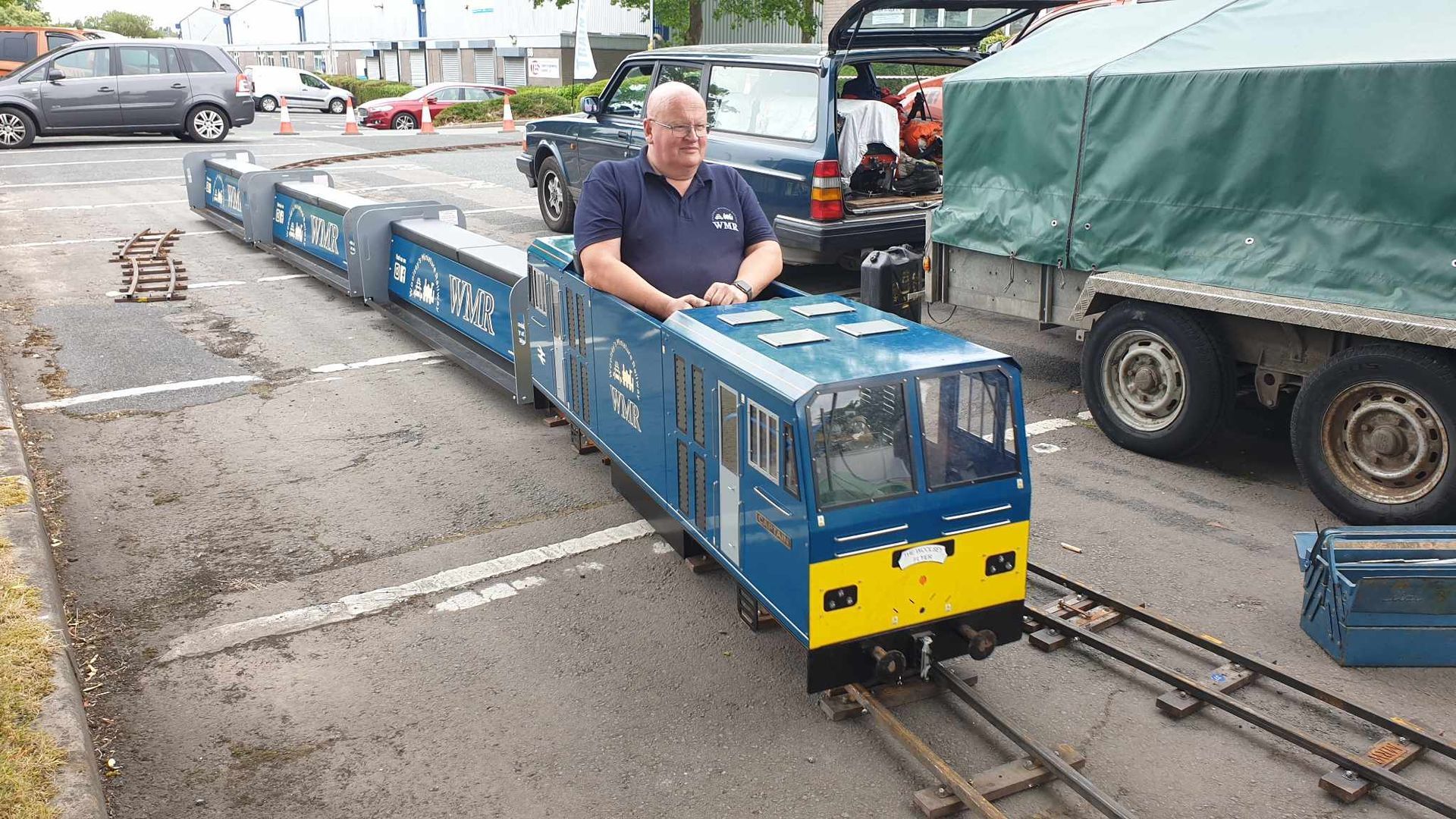

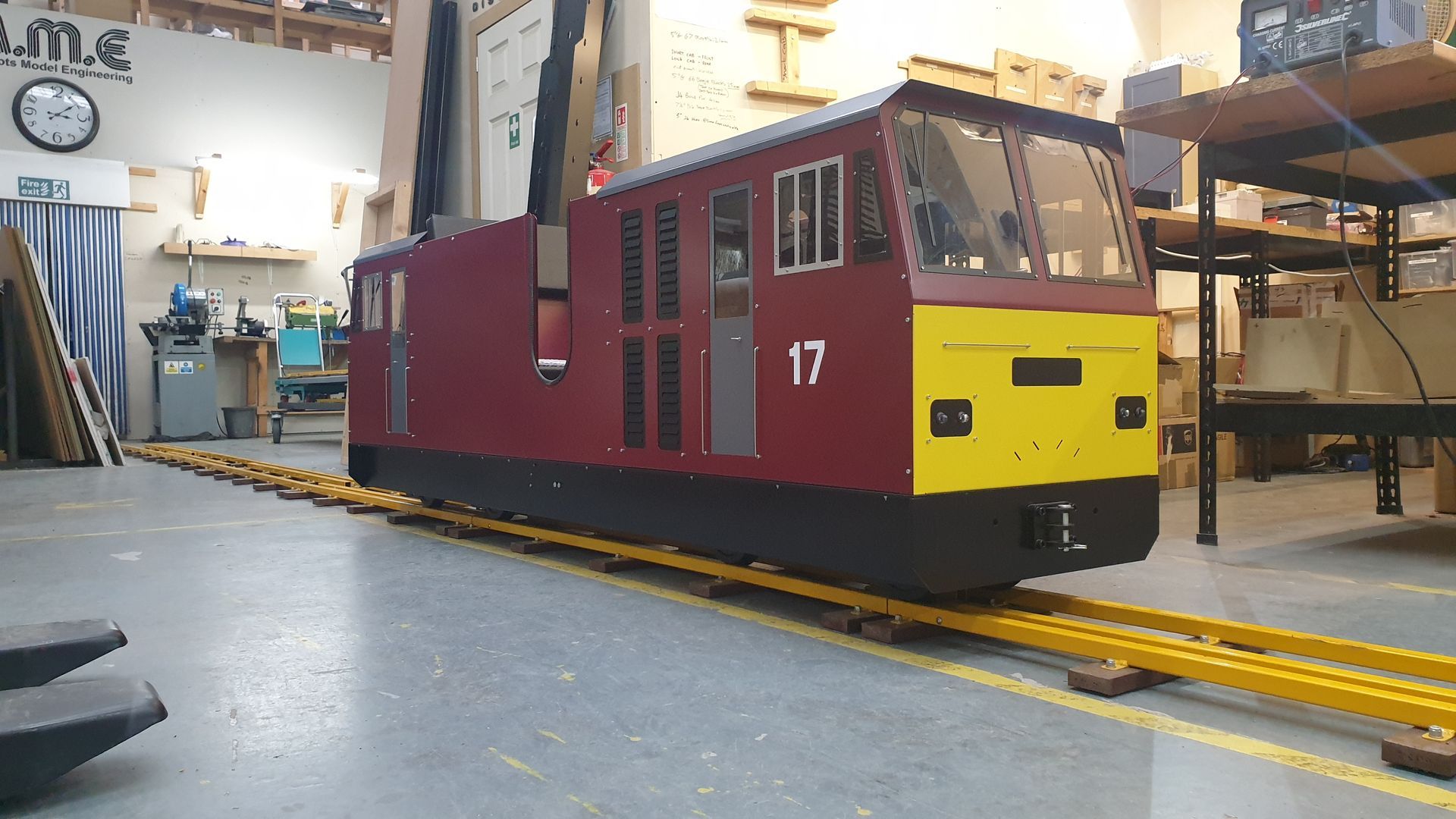

7.1/4"g 4Hp, 3000 watts, 24v Excalibur II

(sit-in) locomotive

These bogies are a "Game changer" for us.

We have designed a new commercial bogie for our Excalibur locomotive.

Using 4 or 2 X 1Hp 24V motors from Italy.

 2 or 1 motor(s) on each bogie.

Good re-gen braking.

6.5" narrow gauge wheel sets, heavy duty suspension.

Chain drive with idler gears to stop any take up or backlash.

The rear bogie is fitted with a disk braking system.

This Excalibur is by far our most powerful locomotive to date.

Perfect for any large railway.

These bogies are 58Kgs each.

COMES WITH A 12 MONTH WARRANTY

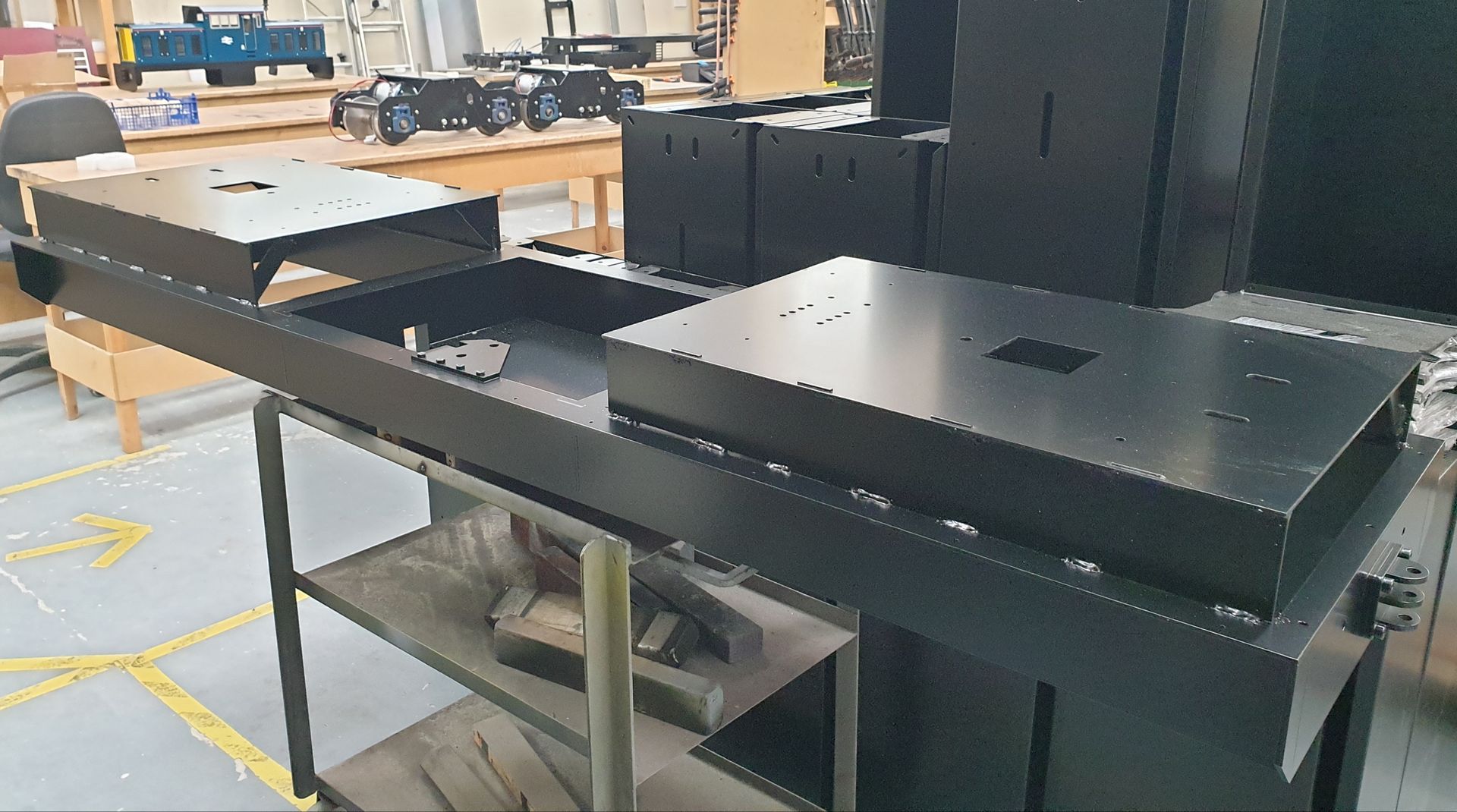

The body is bolted to a full length precision CNC laser cut fully welded, powder coated black steel chassis.

The body has a "Step through" panel on both sides for ease of access, no doors to deal with.
The bogies are 6mm CNC laser cut steel, welded and powder coated black with outer steel roller bearings for stability.
All take up roller bearing axle boxes and wheel sets are independently sprung for very smooth running on undulating track.
The Excalibur takes 4 to 8 batteries (not included with loco) 2 in the front cab & 2/4 in the rear cab and as a  24V system.

The 12v circuit is taken from an inverter from the 24v supply.

Parking / Emergency hand brake fitted, 360amp control system, changeable front & rear, white & red LEDs as standard.

All wheel drive.
Motor set gearing is 7.7 to 1

Options available: Vacuum pump, gauge & switching fitted for the operation of club coaching stock, Internal 24V charging circuit with breaker. (No need to remove the batteries for charging) Own 24v charger required.

Our locomotives do not include batteries within the price, but we can have them ready for you to collect with your locomotive at extra cost.

Ready to run includes a painted body to your choice of livery (Within our own colour range),

windows & LEDs etc all fitted.

All internal electrics fitted including 24v control system, horn and plugs & sockets etc

and sound if ordered.

Dimensions

7.1/4" gauge:
Length 7ft 5" (2260mm) over couplings
Width 21.5" (550mm)
Height 29.5" (750mm)

When ordering a steel bodied locomotive

you can have any combination of powder coated colours

from our standard range.

Price list

Ready to run 2Hp 1500 watts (2M) (AWD) £8495

Ready to run 4Hp 3000 watts (4M) (AWD) £8995

(Chain drive, 6.5" narrow gauge wheel sets, heavy duty suspension)

Add diesel start / stop engine sound (fitted) £420



Vacuum pump fitted £400

Internal 24V charging circuit with breaker £75

(No need to remove the batteries for charging)

Own 24v charger required

£1000 deposit required at time of order.

Please contact us for lead times & delivery details.

All prices include VAT. Balance on collection / Despatch of order.
