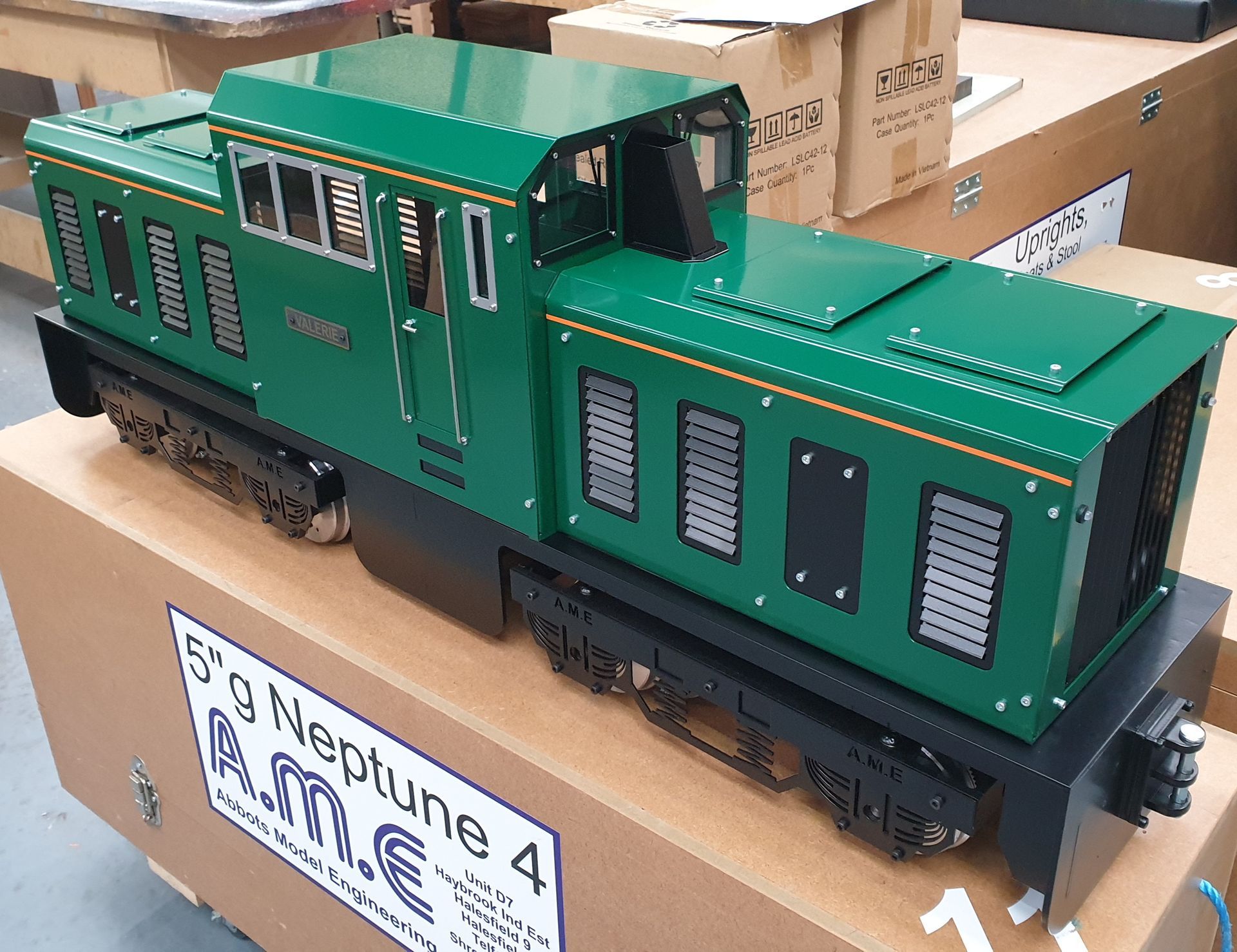

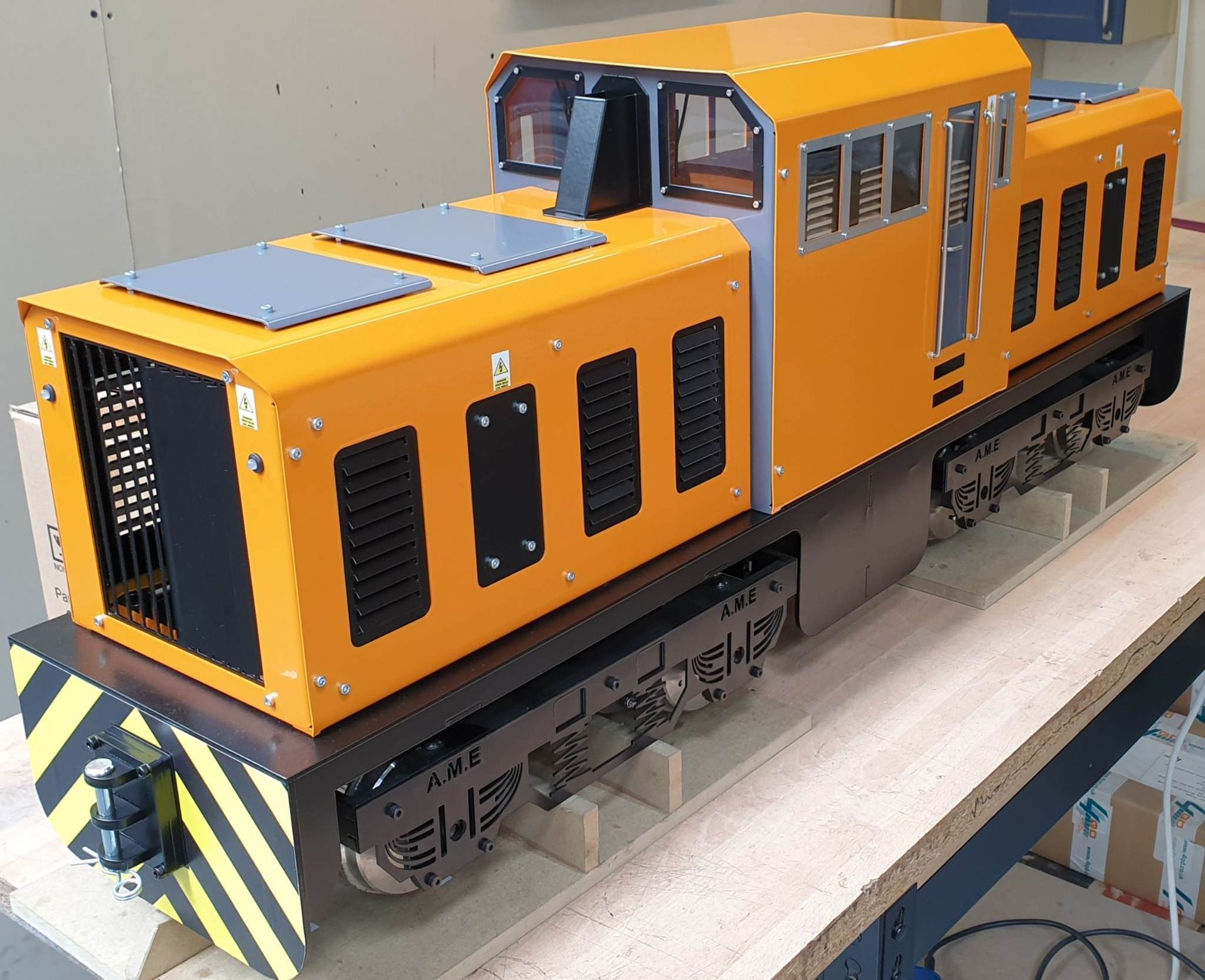

Chassis, Bogie frames & Bogie detail
COMES WITH A 12 MONTH WARRANTY
1.5mm Powder coated steel body.
We have utilised the bogie frames from our well proven class 67,
With new bogie detail, showing coil and leaf springs.
Small enough to fit into the average car.
It has the same power as our larger class 66 / 67 locomotives.
This locomotive is capable of pulling 10 to 14+ people + driver.
(Subject to track and weather conditions)
The laser cut steel body sits on a full length precision CNC laser cut fully welded, powder coated steel chassis.
The bogies are 6mm CNC laser cut, welded and powder coated black.
All axle boxes and wheel sets are independently sprung for very smooth running on undulating track.
Designed from the outset to be a one person operation when it comes to loading & un-loading the locomotive to / from your vehicle or trailer.
Breaks down in to 4 parts:
Body, Chassis, 2 x bogies.
You require 2 x 12v batteries (not included with loco)
The Vulcan 4 is 24V
Comes with 4 motor sets.
Motor set gearing is 7 to 1
Ready to run only.
Ready to run is just that, ready to run,
Our locomotives do not include batteries within the price, but we can have them ready for you to
collect with your locomotive at extra cost.
Ready to run includes a painted body to your choice of livery, windows & LEDs etc all fitted.
All internal electrics fitted including 24v control system, horn and plugs & sockets etc
and sound if ordered.
Bogies complete with detail, ready to run.
As the 4 is part of our own range of locomotives, you can have any colour you like.
(Within our own colour range)
Dimensions:
5" gauge:
Length 46.75" (1190mm) over couplings
Width 9.25" (236mm)
Height 16.5" (420mm)
When ordering a steel bodied locomotive
you can have any combination of powder coated colours
from our standard range.
Ready to run £2620
£400 deposit required at time of order.
Please contact us for lead times & delivery details.
Normally within 4 weeks.
All prices include VAT. Balance on collection / Despatch of order.
